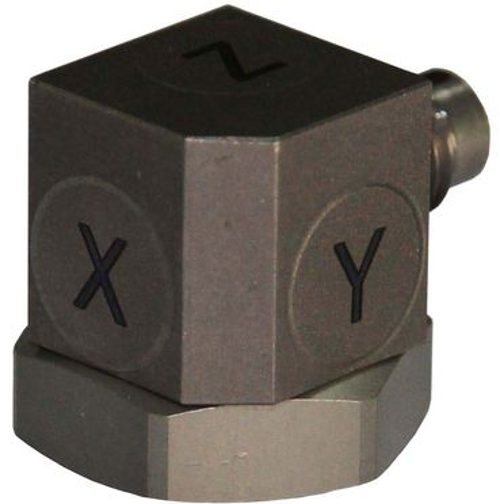

#SW14533 triaxial accelerometer

The SW14533 triaxial accelerometer is a Shear type of construction (sensing geometry), characterized by a sensitivity of 100 mV/g and a working frequency range from 1 Hz to 8 kHz. The dynamic range of the SW14533 allows measuring acceleration levels of up to ± 50g (peak). Furthermore, the SW14533 is embedded within a titanium alloy housing thanks to which the weight of the device is just 8,4 g. Each SW series accelerometer is equipped with a Microdot connector. Moreover, the SW14533 is compatible with the IEPE powering standard (ICP®). The accelerometer is mounted on the surface utilizing a standard mountign screw (mounting thread 3)

Popular applications:

• Routine Vibration Testing
• Automotive, Railway And Aerospace NVH
• Modal Analysis
• OPTA Testing
• Quality testing

Download full data sheet in pdf format

#Technical specification of SW14533 accelerometer

Parameter	Value
Sensitivity ( ± 5%)	100mV/g
Measurement Range	± 50g (peak)
Frequency range ( ± 5%)	1 Hz do 8 kHz
Maximum Acceleration	± 400g (peak)
Overload Limit (Shock)	± 1000g (peak)
Temperature Range	-50 do 120 C °
Size (Without Connector)	12 x 12 x 12 mm (Width x Length x Height)
Weight	8,4 g
Connector type	Microdot to BNC or SMB with customized length
Mounting	Screw (mounting thread 3)
